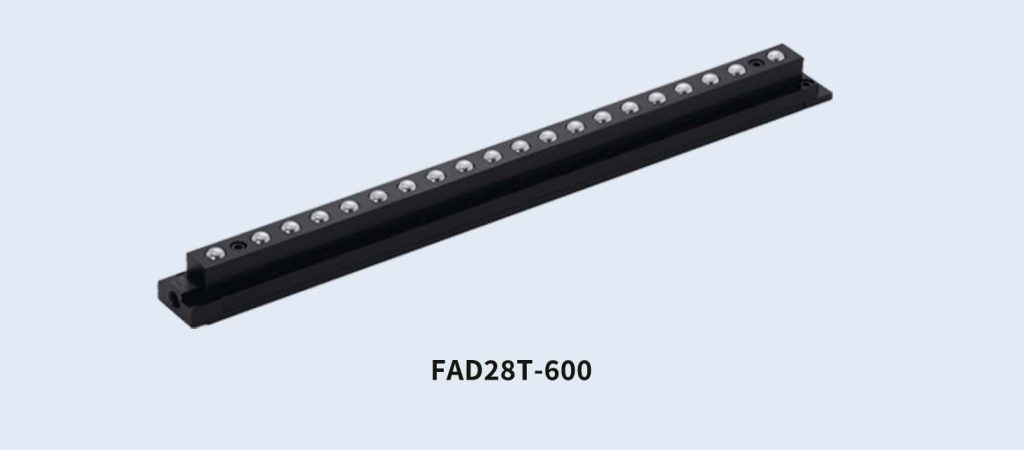

FREEBEAR福力百亚钣金机专用空气式举模器型号：FAD28T-600
苏州上野机电设备有限公司询价咨询电话：17895046997 刘先生 同微信

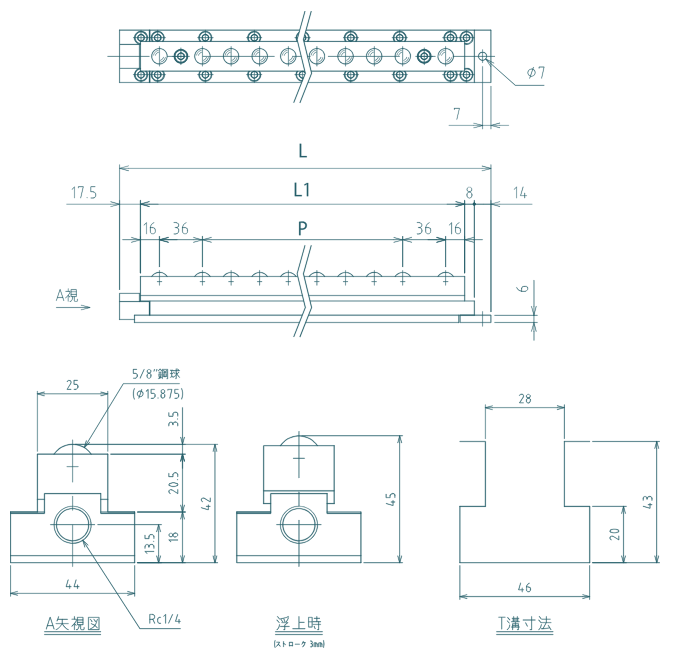

| 品名 | 本体寸法（mm） | 自重 | 使用空気圧 | データ ダウンロード （DXF/PDF） | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | L1 | P | kg | 0.3MPa | 0.4MPa | 0.5MPa | 0.6MPa | ||||||
| 負荷能力 | |||||||||||||
| kN | kgf | kN | kgf | kN | kgf | kN | kgf | ||||||
| FAD28T-300 | 311.5 | 272 | 7×P24=168 | 2.6 | 1.23 | 124.9 | 1.47 | 149.9 | 1.96 | 199.9 | 2.45 | 249.8 | |

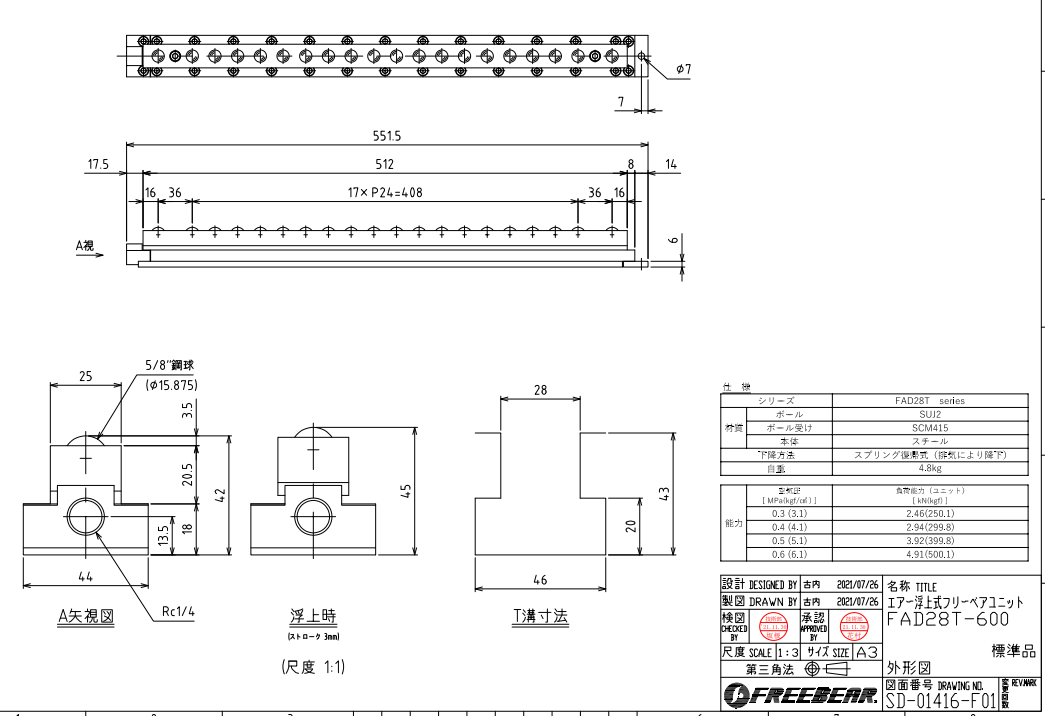

| FAD28T-600 | 551.5 | 512 | 17×P24=408 | 4.8 | 2.46 | 250.1 | 2.94 | 299.8 | 3.92 | 399.8 | 4.91 | 500.1 | |
| FAD28T-700 | 695.5 | 656 | 23×P24=552 | 6.0 | 3.07 | 312.6 | 3.68 | 375.3 | 4.90 | 499.7 | 6.13 | 625.1 | |
| FAD28T-800 | 791.5 | 752 | 27×P24=648 | 6.8 | 3.71 | 378.8 | 4.49 | 458.7 | 5.96 | 608.0 | 7.42 | 757.6 | |
苏州上野机电设备有限公司销售型号：
FAD28T-300 FREEBEAR-UENO
FAD28T-600 FREEBEAR-UENO
FAD28T-700 FREEBEAR-UENO
FAD28T-800 FREEBEAR-UENO
FAD22T-450 FREEBEAR-UENO
FAD22T-520 FREEBEAR-UENO
FAD22T-600 FREEBEAR-UENO
FAD22T-700 FREEBEAR-UENO
FAD22T-800 FREEBEAR-UENO
FAD18T-200 FREEBEAR-UENO
FAD18T-600 FREEBEAR-UENO
AFU-130W-11-600 FREEBEAR-UENO
AFU-130W-12-650 FREEBEAR-UENO
AFU-130W-13-700 FREEBEAR-UENO
AFU-130W-14-750 FREEBEAR-UENO
AFU-130W-15-800 FREEBEAR-UENO
AFU-130W-16-850 FREEBEAR-UENO
AFU-130W-17-900 FREEBEAR-UENO
AFU-130W-18-950 FREEBEAR-UENO
AFU-2743W-6-200 FREEBEAR-UENO
AFU-2743W-9-300 FREEBEAR-UENO
AFU-2743W-13-400 FREEBEAR-UENO
AFU-2743W-16-500 FREEBEAR-UENO
AFU-2743W-19-600 FREEBEAR-UENO
AFU-2743W-23-700 FREEBEAR-UENO
AFU-2743W-26-800 FREEBEAR-UENO
AFU-2743W-29-900 FREEBEAR-UENO
AFU-65L-3-200 FREEBEAR-UENO
AFU-65L-4-250 FREEBEAR-UENO
AFU-65L-8-450 FREEBEAR-UENO
AFU-65L-9-500 FREEBEAR-UENO
AFU-65L-10-550 FREEBEAR-UENO
AFU-65L-11-600 FREEBEAR-UENO
AFU-65L-12-650 FREEBEAR-UENO
AFU-65L-13-700 FREEBEAR-UENO
AFU-65L-14-750 FREEBEAR-UENO
AFU-65L-15-800 FREEBEAR-UENO
AFU-65L-16-850 FREEBEAR-UENO
AFU-65L-17-900 FREEBEAR-UENO
AFU-65L-18-950 FREEBEAR-UENO
AFU-65S-8-450 FREEBEAR-UENO
AFU-65S-9-500 FREEBEAR-UENO
AFU-65S-10-550 FREEBEAR-UENO
AFU-65S-11-600 FREEBEAR-UENO
AFU-65S-12-650 FREEBEAR-UENO
AFU-65S-13-700 FREEBEAR-UENO
AFU-65S-14-750 FREEBEAR-UENO
AFU-65S-15-800 FREEBEAR-UENO
AFU-65S-16-850 FREEBEAR-UENO
AFU-65S-17-900 FREEBEAR-UENO
AFU-65S-18-950 FREEBEAR-UENO
AFU-32S-4-200 FREEBEAR-UENO
AFU-32S-5-250 FREEBEAR-UENO
AFU-32S-6-300 FREEBEAR-UENO
AFU-32S-7-350 FREEBEAR-UENO
AFU-32S-8-400 FREEBEAR-UENO
AFU-32S-9-450 FREEBEAR-UENO
AFU-32S-10-500 FREEBEAR-UENO
AFU-32S-11-550 FREEBEAR-UENO
AFU-32S-12-600 FREEBEAR-UENO
