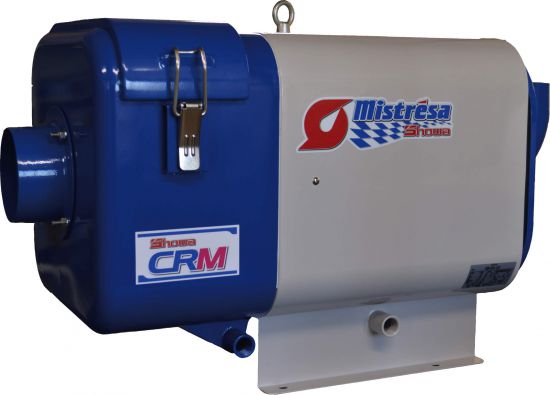

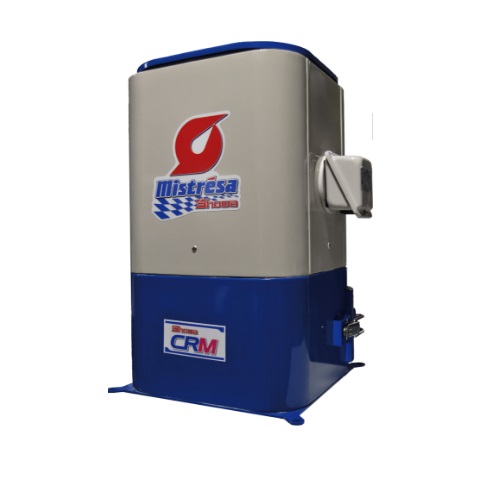

多选系列【Mistresa】（CRM类型） 可配合客户使用情况，选择不同的滤网与过滤组合。 CRM类型（水平类型）让环境更洁净！ 多选系列【Mistresa】（CRM类型） 可配合客户使用情况，选择不同的滤网与过滤组合。 兼具零部件清洗机的高温集雾功能
统一咨询热线：0512-66051469
在线咨询| 用途与特征 |  |
  | |
| 系列 | 吸入口直径 | 相 | 输出 | 50Hz | 60Hz | ||
| (mm) | 最大气流 | 最大静压 | 最大气流 | 最大静压 | |||
| (m3/min) | (kPa) | (m3/min) | (kPa) | ||||
| CRM-H02-S11 | 98 | 3 | 0.2 | 4.1 | 0.55 | 4.8 | 0.75 |
| CRM-H02-S12 | 98 | 3 | 0.2 | 5.4 | 0.55 | 6.2 | 0.75 |
| CRM-H02-S13 | 98 | 3 | 0.2 | 4.6 | 0.55 | 5.4 | 0.75 |
| CRM-H02-S21 | 98 | 3 | 0.2 | 3.8 | 0.55 | 4.5 | 0.75 |
| CRM-H02-S22 | 98 | 3 | 0.2 | 5.1 | 0.55 | 5.8 | 0.75 |
| CRM-H02-S23 | 98 | 3 | 0.2 | 4.3 | 0.55 | 5.1 | 0.75 |
| CRM-H04-S11 | 98 | 3 | 0.4 | 4.4 | 0.75 | 5.2 | 1.1 |
| CRM-H04-S12 | 98 | 3 | 0.4 | 6 | 0.75 | 7 | 1.1 |
| CRM-H04-S13 | 98 | 3 | 0.4 | 4.9 | 0.75 | 5.9 | 1.1 |
| CRM-H04-S21 | 98 | 3 | 0.4 | 4.1 | 0.75 | 4.9 | 1.1 |
| CRM-H04-S22 | 98 | 3 | 0.4 | 5.5 | 0.75 | 6.8 | 1.1 |
| CRM-H04-S23 | 98 | 3 | 0.4 | 4.6 | 0.75 | 5.6 | 1.1 |
| CRM-H07-S11 | 123 | 3 | 0.75 | 8.4 | 1.1 | 9.8 | 1.6 |
| CRM-H07-S12 | 123 | 3 | 0.75 | 9.8 | 1.1 | 11.5 | 1.6 |
| CRM-H07-S13 | 123 | 3 | 0.75 | 8 | 1.1 | 9.6 | 1.6 |
| CRM-H07-S21 | 123 | 3 | 0.75 | 7.8 | 1.1 | 9.4 | 1.6 |
| CRM-H07-S22 | 123 | 3 | 0.75 | 9.2 | 1.1 | 10.5 | 1.6 |
| CRM-H07-S23 | 123 | 3 | 0.75 | 7.6 | 1.1 | 9.2 | 1.6 |
| CRM-H15-S11 | 148 | 3 | 1.5 | 15 | 1.6 | 18 | 2.25 |
| CRM-H15-S12 | 148 | 3 | 1.5 | 18 | 1.6 | 21.5 | 2.25 |
| CRM-H15-S13 | 148 | 3 | 1.5 | 15 | 1.6 | 18 | 2.25 |
| CRM-H15-S21 | 148 | 3 | 1.5 | 14.5 | 1.6 | 17.5 | 2.25 |
| CRM-H15-S22 | 148 | 3 | 1.5 | 17 | 1.6 | 20 | 2.25 |
| CRM-H15-S23 | 148 | 3 | 1.5 | 14.5 | 1.6 | 17.5 | 2.25 |
| CRM-H22-S11 | 198 | 3 | 2.2 | 18 | 1.7 | 21.5 | 2.4 |
| CRM-H22-S12 | 198 | 3 | 2.2 | 24.5 | 1.7 | 28.5 | 2.4 |
| CRM-H22-S13 | 198 | 3 | 2.2 | 18.5 | 1.7 | 22.5 | 2.4 |
| CRM-H22-S21 | 198 | 3 | 2.2 | 17.5 | 1.7 | 20.5 | 2.4 |
| CRM-H22-S22 | 198 | 3 | 2.2 | 22.5 | 1.7 | 27 | 2.4 |
| CRM-H22-S23 | 198 | 3 | 2.2 | 18 | 1.7 | 21 | 2.4 |
| 系列 | 收集效率 | 最高吸气温度 | 1m dB (A)的噪音 | 质量 | |||
| (%) | (℃) | 50/60Hz | (kg) | ||||
| CRM-H02-S11 | 98.4 | 50 | 64/67 | 26 | |||
| CRM-H02-S12 | 99.2 | 50 | 64/67 | 26 | |||
| CRM-H02-S13 | 99.6 | 50 | 64/67 | 26 | |||
| CRM-H02-S21 | 98.9 | 50 | 64/67 | 26 | |||
| CRM-H02-S22 | 99.5 | 50 | 64/67 | 26 | |||
| CRM-H02-S23 | 99.8 | 50 | 64/67 | 26 | |||
| CRM-H04-S11 | 98.4 | 50 | 68/72 | 32 | |||
| CRM-H04-S12 | 99.2 | 50 | 68/72 | 32 | |||
| CRM-H04-S13 | 99.6 | 50 | 68/72 | 32 | |||
| CRM-H04-S21 | 98.9 | 50 | 68/72 | 32 | |||
| CRM-H04-S22 | 99.5 | 50 | 68/72 | 32 | |||
| CRM-H04-S23 | 99.8 | 50 | 68/72 | 32 | |||
| CRM-H07-S11 | 98.4 | 50 | 73/78 | 42 | |||
| CRM-H07-S12 | 99.2 | 50 | 73/78 | 42 | |||
| CRM-H07-S13 | 99.6 | 50 | 73/78 | 42 | |||
| CRM-H07-S21 | 98.9 | 50 | 73/78 | 42 | |||
| CRM-H07-S22 | 99.5 | 50 | 73/78 | 42 | |||
| CRM-H07-S23 | 99.8 | 50 | 73/78 | 42 | |||
| CRM-H15-S11 | 98.4 | 50 | 81/83 | 67 | |||
| CRM-H15-S12 | 99.2 | 50 | 81/83 | 67 | |||
| CRM-H15-S13 | 99.6 | 50 | 81/83 | 67 | |||
| CRM-H15-S21 | 98.9 | 50 | 81/83 | 67 | |||
| CRM-H15-S22 | 99.5 | 50 | 81/83 | 67 | |||
| CRM-H15-S23 | 99.8 | 50 | 81/83 | 67 | |||
| CRM-H22-S11 | 98.4 | 50 | 83/86 | 77 | |||
| CRM-H22-S12 | 99.2 | 50 | 83/86 | 77 | |||
| CRM-H22-S13 | 99.6 | 50 | 83/86 | 77 | |||
| CRM-H22-S21 | 98.9 | 50 | 83/86 | 77 | |||
| CRM-H22-S22 | 99.5 | 50 | 83/86 | 77 | |||
| CRM-H22-S23 | 99.8 | 50 | 83/86 | 77 | |||
