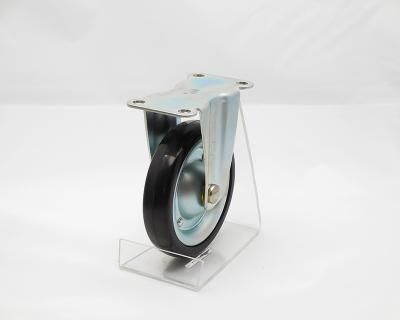

UCHIMURA-CASTER内村合成橡胶固定脚轮型号：No.607
苏州上野机电设备有限公司询价咨询电话：17895046997 刘先生 同微信
通常常用的车轮，对载荷的耐久力很强。
可以在安装板（垫圈）的4个孔中使用螺栓、螺母进行安装。
与自在板型、自在渣滓型、自在螺栓型不同，是不能进行旋转的脚轮。
根据系列和车轮直径的大小有2孔式·4孔式的阵容，可以与自在板型一起使用。

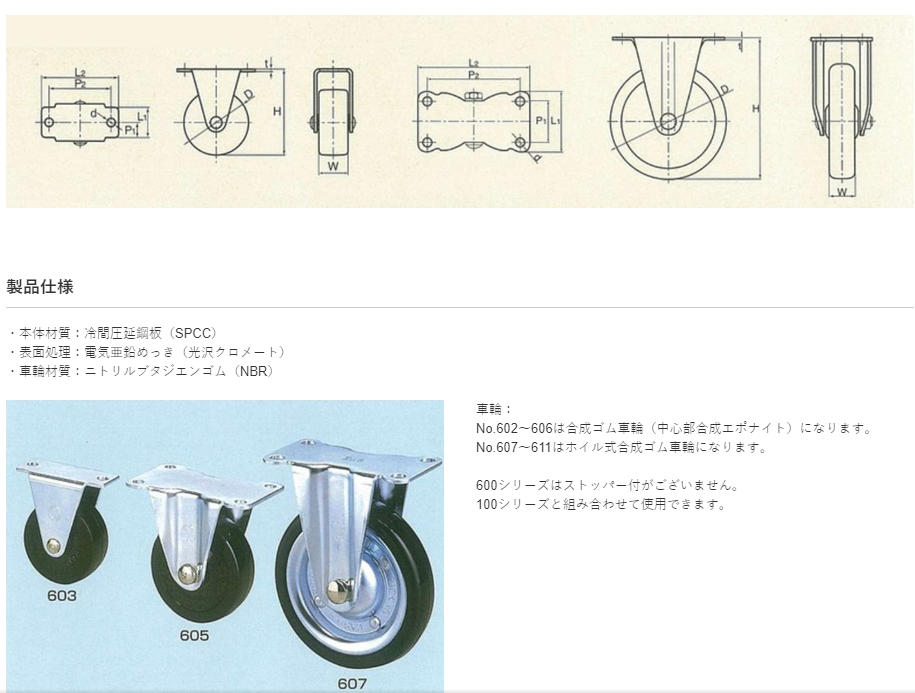

・主体材质：冷轧钢板（SPCC）
・表面处理：电镀锌（光泽铬酸盐）
・车轮材质：丁腈橡胶（NBR）
车轮：
No.602～606为合成橡胶车轮（中心部位合成艾波石）。
No.607～611为箔式合成橡胶车轮。
600系列没有制动器。
可与100系列组合使用。

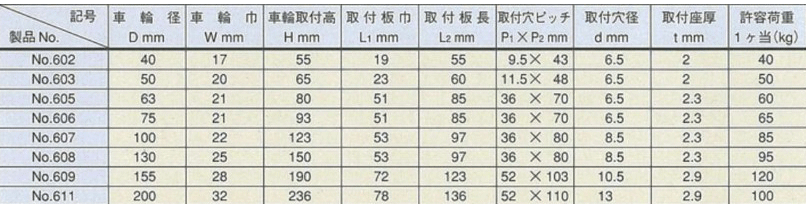

| 車輪特性 | 耐磨耗性 / 耐ガソリン(軽油含む) / 耐油性 / 耐薬品性 | 許容荷重(daN) | 83.3 |
|---|---|---|---|
| キャスタタイプ | プレート式固定 | 車輪材質 | [合成ゴム] ニトリルブタジエンゴム(NBR) |
| 車輪取付高 H(mm) | 123 | 車輪径 D(φ) | 100 |
| 車輪巾 W(mm) | 22 | 寸法(長さ) L2(mm) | 97 |
| 寸法(幅) L1(mm) | 53 | 取付穴ピッチ 長手方向 P2(mm) | 80 |
| 取付穴ピッチ 短手方向 P1(mm) | 36 | ストッパ | なし |
| 荷重範囲(daN) | 80.01～140.00 | 本体材質 | 冷間圧延鋼板(SPCC) |
| 取付穴種類 | 丸穴 | 種類 | キャスタ |
| 車輪カラー | 黒(ホイル式合成ゴム車輪) | 取付穴径 d(mm) | 8.5 |
| 取付座厚 ｔ(mm) | 2.3 | - | - |
苏州上野机电设备有限公司销售型号：
NO.602 UCHIMURA-CASTER-UENO
NO.603 UCHIMURA-CASTER-UENO
NO.605 UCHIMURA-CASTER-UENO
NO.606 UCHIMURA-CASTER-UENO
NO.607 UCHIMURA-CASTER-UENO
NO.608 UCHIMURA-CASTER-UENO
NO.609 UCHIMURA-CASTER-UENO
NO.611 UCHIMURA-CASTER-UENO
No.609E UCHIMURA-CASTER-UENO
No.608E UCHIMURA-CASTER-UENO
No.607E UCHIMURA-CASTER-UENO
No.606E UCHIMURA-CASTER-UENO
No.605E UCHIMURA-CASTER-UENO
No.603E UCHIMURA-CASTER-UENO
No.605AF UCHIMURA-CASTER-UENO
No.603AF UCHIMURA-CASTER-UENO
No.604ZH UCHIMURA-CASTER-UENO
No.607B UCHIMURA-CASTER-UENO
No.606B UCHIMURA-CASTER-UENO
No.605B UCHIMURA-CASTER-UENO
No.611 UCHIMURA-CASTER-UENO
No.608 UCHIMURA-CASTER-UENO
No.607 UCHIMURA-CASTER-UENO
No.606 UCHIMURA-CASTER-UENO
No.605 UCHIMURA-CASTER-UENO
No.603 UCHIMURA-CASTER-UENO
No.602 UCHIMURA-CASTER-UENO
No.604G-N(M) UCHIMURA-CASTER-UENO
No.604G-N(L) UCHIMURA-CASTER-UENO
No.604G-N(B) UCHIMURA-CASTER-UENO
No.602G-N(M) UCHIMURA-CASTER-UENO
No.602G-N(L) UCHIMURA-CASTER-UENO
No.602G-N(B) UCHIMURA-CASTER-UENO
No.603-N UCHIMURA-CASTER-UENO
No.602-N UCHIMURA-CASTER-UENO
No.603AF-N UCHIMURA-CASTER-UENO
No.603-FE UCHIMURA-CASTER-UENO
No.602-FE UCHIMURA-CASTER-UENO
No.605FH-P UCHIMURA-CASTER-UENO
No.604FH-P UCHIMURA-CASTER-UENO
No.611PR UCHIMURA-CASTER-UENO
No.608PR UCHIMURA-CASTER-UENO
No.607PR UCHIMURA-CASTER-UENO
No.607HB UCHIMURA-CASTER-UENO
No.607H UCHIMURA-CASTER-UENO
No.606H UCHIMURA-CASTER-UENO
No.605H UCHIMURA-CASTER-UENO
No.611B UCHIMURA-CASTER-UENO
No.609B UCHIMURA-CASTER-UENO
No.608B UCHIMURA-CASTER-UENO
No.609 UCHIMURA-CASTER-UENO
No.606G-N(M) UCHIMURA-CASTER-UENO
No.606G-N(L) UCHIMURA-CASTER-UENO
No.606G-N(B) UCHIMURA-CASTER-UENO
No.605G-N(M) UCHIMURA-CASTER-UENO
No.605G-N(L) UCHIMURA-CASTER-UENO
No.605G-N(B) UCHIMURA-CASTER-UENO
No.607-N UCHIMURA-CASTER-UENO
No.606-N UCHIMURA-CASTER-UENO
No.605-N UCHIMURA-CASTER-UENO
No.605AF-N UCHIMURA-CASTER-UENO
No.605-FE UCHIMURA-CASTER-UENO
No.604ZH-P UCHIMURA-CASTER-UENO
No.606JH-P UCHIMURA-CASTER-UENO
No.605JH-P UCHIMURA-CASTER-UENO
No.604JH-P UCHIMURA-CASTER-UENO
No.606FH-P UCHIMURA-CASTER-UENO
No.604HB-PA(I) UCHIMURA-CASTER-UENO
No.604HB-PA(O) UCHIMURA-CASTER-UENO
No.604HB-PA(B) UCHIMURA-CASTER-UENO
No.602HB2-EP UCHIMURA-CASTER-UENO
No.609PR UCHIMURA-CASTER-UENO
