椿本拖链TSUBAKI型号TKP62H34W200R150-25L-固定端和移动端FOA-MOA

苏州上野公司主营日本机械，联 系人-张-涛- 手- 机1-8-8-9698-4864。

苏州上野公司张涛批发销售日本椿本拖链TSUBAKI型号TKP62H34W200R150-25L-固定端和移动端FOA-MOA。日本椿本自从1917年之创立经历了一段的长时间，在工业级滚子链条及动力传动系统成为世界上之领导供应厂商。目前拥有四大事业部，分别是链条事业部门，汽车部件事业部门，精机事业部门，物料搬运事业部门。“椿本”除提供引以为荣的、全球市场份额第1的动力传动用驱动链之外，还提供生产线传输输送链、面向食品行业的塑料链等适于机械、机床、造船、钢铁、IT所有产业的链条条。在对环保要求日益高涨的背景下，还提供可循环再利用的塑料链等环保链条。该事业部门下设的京田边工厂，是全球最大的链条生产基地，拥有世界最先进的设备和最高的生产能力。

随着自动化程度及运行速度和加速度的日益提高，对设备和系统移动部分能量控制的要求也越来越高。 传统供电形式―电缆卷筒滑环、拖缆小车、滑触线，都存在着各种缺陷，像驱动装置复杂、电缆易磨损、运行噪音大、维修成本高等，已经难以满足现在设计工艺要求。    拖链系统正是解决以上问题的选择。具有无须外加动力驱动，运行稳定，维修简易等一系列特点。■ 适合于使用在往复运动的场合，能够对内置的电缆、油管、气管、水管等起到牵引和保护作用。■ 拖链每节都能打开拆卸，便于安装和维修。■ 运动时噪音低。■ 使用寿命长，在相当恶劣的工况下亦能运行两千万次以上。■ 耐化学腐蚀。■ 适用于高速运动（数十米/秒），轻松实现加速和急停。■ 适用于长行程移动，长行程达到500m。■ 可缩短50%以上的电缆长度。■ 多种安装形式，满足不同设计要求。特殊场合中，像旋转移动、三维运动等拖链同样能很好的解决。

苏州上野机电设备有限公司是一家日本进口机械供应商。主要经营日本椿本集团产品等，我们还与其他厂商建立了良好的代理协作关系，为顾客提供种类繁多价格可靠的众多产品，我司以正品有保证让大家买的放心，服务有专业水平让大家买的省心，态度有亲切感让大家买的开心。2021年我司重点面向在华日企，央企国企，A股上市公司等长期需要进口高品质产品的客户朋友，进一步提高服务水平，和大家一起发展壮大！

苏州上野公司张涛批发销售的型号：

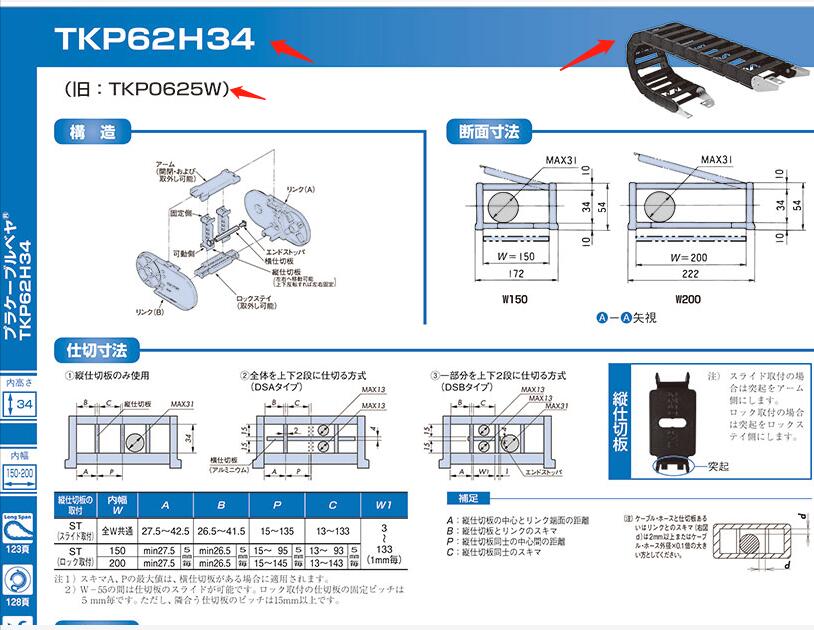

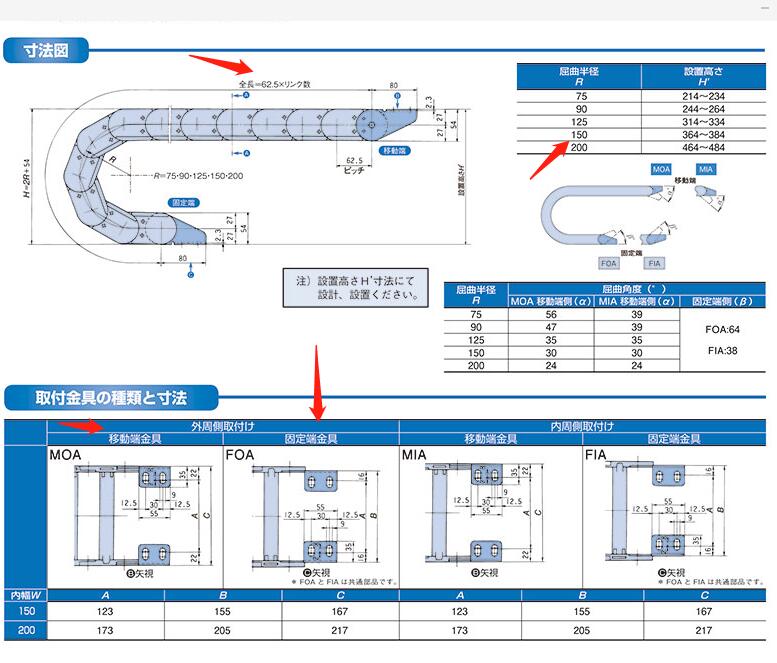

日本椿本拖链也叫电线保护槽型号：TKP62H34W200R150-25L-固定端和移动端FOA-MOA ，长度=节距62.5毫米*25节=1562.50毫米。

日本椿本拖链也叫电线保护槽型号：TKP0625W200R150W 25L，长度=节距62.5毫米*25节=1562.50毫米。

苏州上野公司张涛批发销售的型号：

日本椿本拖链电线保护槽型号TKP0580-50B-R90（拖链本体）附带 安装支架KA+IA 固定端+移动端

日本椿本拖链电线保护槽型号TKPH39-30W50R90（拖链本体）附带 安装支架KA+IA 固定端+移动端

苏州上野公司张涛批发销售的型号：

E11 5154 TKP91H56W150-MU K 9,290 TKP0910W150H56-PIA TKP0910W150H56-PIA

E11 5155 TKP91H56W150-FU K 9,290 TKP0910W150H56-PKA TKP0910W150H56-PKA

E11 5156 TKP91H56W200-MU K 9,410 TKP0910W200H56-PIA TKP0910W200H56-PIA

E11 5157 TKP91H56W200-FU K 9,410 TKP0910W200H56-PKA TKP0910W200H56-PKA

E11 5158 TKP91H56W250-MU K 9,530 TKP0910W250H56-PIA TKP0910W250H56-PIA

E11 5159 TKP91H56W250-FU K 9,530 TKP0910W250H56-PKA TKP0910W250H56-PKA

E11 5160 TKP91H56W300-MU K 9,640 TKP0910W300H56-PIA TKP0910W300H56-PIA

E11 5161 TKP91H56W300-FU K 9,640 TKP0910W300H56-PKA TKP0910W300H56-PKA

E11 5162 TKP91H56W350-MU K 9,760 TKP0910W350H56-PIA TKP0910W350H56-PIA

E11 5163 TKP91H56W350-FU K 9,760 TKP0910W350H56-PKA TKP0910W350H56-PKA

E11 5164 TKP91H56W400-MU K 9,880 TKP0910W400H56-PIA TKP0910W400H56-PIA

E11 5165 TKP91H56W400-FU K 9,880 TKP0910W400H56-PKA TKP0910W400H56-PKA

E11 5166 TKP91H56W450-MU K 10,000 TKP0910W450H56-PIA TKP0910W450H56-PIA

E11 5167 TKP91H56W450-FU K 10,000 TKP0910W450H56-PKA TKP0910W450H56-PKA

E11 5168 TKP91H56W500-MU K 10,100 TKP0910W500H56-PIA TKP0910W500H56-PIA

E11 5169 TKP91H56W500-FU K 10,100 TKP0910W500H56-PKA TKP0910W500H56-PKA

E11 5170 TKP91H80W150-MU K 10,400 TKP0910W150H80-PA TKP0910W150H80-PA

E11 5292 TKP91H80W150-FU K 10,400 TKP0910W150H80-PA TKP0910W150H80-PA

E11 5171 TKP91H80W200-MU K 10,500 TKP0910W200H80-PA TKP0910W200H80-PA

E11 5293 TKP91H80W200-FU K 10,500 TKP0910W200H80-PA TKP0910W200H80-PA

E11 5172 TKP91H80W250-MU K 10,700 TKP0910W250H80-PA TKP0910W250H80-PA

E11 5294 TKP91H80W250-FU K 10,700 TKP0910W250H80-PA TKP0910W250H80-PA

E11 5173 TKP91H80W300-MU K 10,800 TKP0910W300H80-PA TKP0910W300H80-PA

E11 5295 TKP91H80W300-FU K 10,800 TKP0910W300H80-PA TKP0910W300H80-PA

E11 5174 TKP91H80W350-MU K 11,000 TKP0910W350H80-PA TKP0910W350H80-PA

E11 5296 TKP91H80W350-FU K 11,000 TKP0910W350H80-PA TKP0910W350H80-PA

E11 5175 TKP91H80W400-MU K 11,100 TKP0910W400H80-PA TKP0910W400H80-PA

E11 5297 TKP91H80W400-FU K 11,100 TKP0910W400H80-PA TKP0910W400H80-PA

E11 5176 TKP91H80W450-MU K 11,300 TKP0910W450H80-PA TKP0910W450H80-PA

E11 5298 TKP91H80W450-FU K 11,300 TKP0910W450H80-PA TKP0910W450H80-PA

E11 5177 TKP91H80W500-MU K 11,400 TKP0910W500H80-PA TKP0910W500H80-PA

E11 5299 TKP91H80W500-FU K 11,400 TKP0910W500H80-PA TKP0910W500H80-PA

E11 8002 TKP35H22-ST K 28 TKP0350-ST TKP0350ST

E11 8003 TKP35H22-HS38 K 76 TKP0350-HS38 TKP0350HS38

E11 8004 TKP35H22-HS50 K 98 TKP0350-HS50 TKP0350HS50

E11 8005 TKP35H22-HS63 K 120 TKP0350-HS63 TKP0350HS63

E11 8006 TKP45H25-ST K 34 TKP0450-ST TKP0450ST

E11 8007 TKP45H25-HS38 K 98 TKP0450-HS38 TKP0450HS38

E11 8008 TKP45H25-HS58 K 122 TKP0450-HS58 TKP0450HS58

E11 8009 TKP45H25-HS78 K 146 TKP0450-HS78 TKP0450HS78

E11 8010 TKP45H25-HS103 K 170 TKP0450-HS103 TKP0450HS103

E11 8012 TKP58H39-ST K 44 TKP0580-ST TKP0580ST

E11 8013 TKP58H39-HS50 K 122 TKP0580-HS50 TKP0580HS50

E11 8014 TKP58H39-HS75 K 146 TKP0580-HS75 TKP0580HS75

E11 8015 TKP58H39-HS100 K 170 TKP0580-HS100 TKP0580HS100

E11 8016 TKP58H39-HS125 K 196 TKP0580-HS125 TKP0580HS125

E11 8018 TKP62H34-ST K 89 TKP0625W-ST TKP0625WST

E11 8020 TKP62H34-HS150 K 220 TKP0625W-HS150 TKP0625WHS150

E11 8021 TKP62H34-HS200 K 244 TKP0625W-HS200 TKP0625WHS200

E11 8023 TKP68H46-STAS K 84 TKP0680-STAS TKP0680STAS

E11 8024 TKP68H46-STAL K 84 TKP0680-STAL TKP0680STAL

E11 8025 TKP68H46-STBL K 105 TKP0680-STBL TKP0680STBL

E11 8026 TKP68H46-STBE K 105 TKP0680-STBE TKP0680STBE

E11 8027 TKP68H46-HS75 K 146 TKP0680-HS75 TKP0680HS75

E11 8028 TKP68H46-HS125 K 196 TKP0680-HS125 TKP0680HS125

E11 8029 TKP68H46-HS150 K 220 TKP0680-HS150 TKP0680HS150

E11 8030 TKP68H46-HS175 K 244 TKP0680-HS175 TKP0680HS175

E11 8031 TKP68H46-EHS22 K 189 TKP0680-EHS22 TKP0680EHS22

E11 8032 TKP68H46-EHS29 K 189 TKP0680-EHS29 TKP0680EHS29

E11 8033 TKP68H46-EHS36 K 214 TKP0680-EHS36 TKP0680EHS36

E11 8034 TKP68H46-EHS43 K 214 TKP0680-EHS43 TKP0680EHS43

E11 8035 TKP68H46-EHS50 K 214 TKP0680-EHS50 TKP0680EHS50

E11 8036 TKP68H46-EHS21.5 K 189 TKP0680-EHS21.5 TKP0680EHS21.5

E11 8037 TKP68H46-EHS28.5 K 189 TKP0680-EHS28.5 TKP0680EHS28.5

E11 8038 TKP68H46-EHS35.5 K 214 TKP0680-EHS35.5 TKP0680EHS35.5

E11 8039 TKP68H46-EHS42.5 K 214 TKP0680-EHS42.5 TKP0680EHS42.5

E11 8040 TKP68H46-EHS49.5 K 214 TKP0680-EHS49.5 TKP0680EHS49.5

E11 8041 TKP68H46-EHS24 K 189 TKP0680-EHS24 TKP0680EHS24

E11 8042 TKP68H46-EHS31 K 189 TKP0680-EHS31 TKP0680EHS31

E11 8043 TKP68H46-EHS38 K 214 TKP0680-EHS38 TKP0680EHS38

E11 8044 TKP68H46-EHS45 K 214 TKP0680-EHS45 TKP0680EHS4

TKP68H46-EHS52 K 214 TKP0680-EHS52 TKP0680EHS52

E11 8046 TKP68H46-EHS22.5 K 189 TKP0680-EHS22.5 TKP0680EHS22.5

E11 8047 TKP68H46-EHS29.5 K 189 TKP0680-EHS29.5 TKP0680EHS29.5

E11 8048 TKP68H46-EHS36.5 K 214 TKP0680-EHS36.5 TKP0680EHS36.5

E11 8049 TKP68H46-EHS43.5 K 214 TKP0680-EHS43.5 TKP0680EHS43.5

E11 8050 TKP68H46-EHS50.5 K 214 TKP0680-EHS50.5 TKP0680EHS50.5

E11 8051 TKP90H50-ST K 111 TKP0900-ST TKP0900ST

E11 8052 TKP90H50-HS100 K 196 TKP0900-HS100 TKP0900HS100

E11 8053 TKP90H50-HS150 K 220 TKP0900-HS150 TKP0900HS150

E11 8054 TKP90H50-HS200 K 244 TKP0900-HS200 TKP0900HS200

E11 8055 TKP125H74-ST K 133 TKP1250-ST TKP1250ST

E11 8056 TKP125H74-HS150 K 220 TKP1250-HS150 TKP1250HS150

E11 8057 TKP125H74-HS250 K 268 TKP1250-HS250 TKP1250HS250

E11 8061 TKP68H46-HS100 K 171 TKP0680-HS100 TKP0680-HS100

E11 8062 TKP68H46-EHS23.5 K 189 TKP0680-EHS23.5 TKP0680-EHS23.5

E11 8063 TKP68H46-EHS30.5 K 189 TKP0680-EHS30.5 TKP0680-EHS30.5

E11 8064 TKP68H46-EHS37.5 K 214 TKP0680-EHS37.5 TKP0680-EHS37.5

E11 8065 TKP68H46-EHS44.5 K 214 TKP0680-EHS44.5 TKP0680-EHS44.5

E11 8066 TKP68H46-EHS51.5 K 214 TKP0680-EHS51.5 TKP0680-EHS51.5

E11 8067 TKP58H39-GS K 116 TKP0580-LS TKP0580-LS

E11 8068 TKP58-GS-ASSY K 30 TKP0580LS-KUMIKOMIHI TKP0580LS-KUMIKOMIHI

E11 8069 TKP68H46-GS K 147 TKP0680-LS TKP0680-LS

E11 8070 TKP68-GS-ASSY K 30 TKP0680LS-KUMIKOMIHI TKP0680LS-KUMIKOMIHI

E11 8071 TKP91H56-STS K 137 TKP0910H56-STS TKP0910H56-STS

E11 8072 TKP91H56-STL K 137 TKP0910H56-STL TKP0910H56-STL

E11 8073 TKP91H56-STE K 168 TKP0910H56-STE TKP0910H56-STE

E11 8074 TKP91H80-STS K 179 TKP0910H80-STS TKP0910H80-STS

E11 8075 TKP91H80-STL K 179 TKP0910H80-STL TKP0910H80-STL

E11 8076 TKP91H80-STE K 189 TKP0910H80-STE TKP0910H80-STE

E11 8077 TKP91H56-HS150 K 220 TKP0910-HS150 TKP0910-HS150

E11 8078 TKP91H56-HS200 K 244 TKP0910-HS200 TKP0910-HS200

E11 8079 TKP91H56-EHS24 K 189 TKP0910-EHS24 TKP0910-EHS24

E11 8080 TKP91H56-EHS30 K 189 TKP0910-EHS30 TKP0910-EHS30

E11 8081 TKP91H56-EHS36 K 214 TKP0910-EHS36 TKP0910-EHS36

E11 8082 TKP91H56-EHS42 K 214 TKP0910-EHS42 TKP0910-EHS42

E11 8083 TKP91H56-EHS48 K 214 TKP0910-EHS48 TKP0910-EHS48

E11 8084 TKP91H56-EHS54 K 214 TKP0910-EHS54 TKP0910-EHS54

E11 8085 TKP91H56-EHS22 K 189 TKP0910-EHS22 TKP0910-EHS22

E11 8086 TKP91H56-EHS28 K 189 TKP0910-EHS28 TKP0910-EHS28

E11 8087 TKP91H56-EHS34 K 214 TKP0910-EHS34 TKP0910-EHS34

E11 8088 TKP91H56-EHS40 K 214 TKP0910-EHS40 TKP0910-EHS40

E11 8089 TKP91H56-EHS46 K 214 TKP0910-EHS46 TKP0910-EHS46

E11 8090 TKP91H56-EHS52 K 214 TKP0910-EHS52 TKP0910-EHS52

E11 8091 TKP91H56-EHS23 K 189 TKP0910-EHS23 TKP0910-EHS23

E11 8092 TKP91H56-EHS29 K 189 TKP0910-EHS29 TKP0910-EHS29

E11 8093 TKP91H56-EHS35 K 214 TKP0910-EHS35 TKP0910-EHS35

E11 8094 TKP91H56-EHS41 K 214 TKP0910-EHS41 TKP0910-EHS41

E11 8095 TKP91H56-EHS47 K 214 TKP0910-EHS47 TKP0910-EHS47

E11 8096 TKP91H56-EHS53 K 214 TKP0910-EHS53 TKP0910-EHS53

E11 8105 TKP35-ST-ASSY K 43 TKP0350ST-KUMIKOMIHI TKP0350ST-KUMIKOMIHI

E11 8106 TKP45-ST-ASSY K 43 TKP0450ST-KUMIKOMIHI TKP0450ST-KUMIKOMIHI

E11 8107 TKP58-ST-ASSY K 43 TKP0580ST-KUMIKOMIHI TKP0580ST-KUMIKOMIHI

E11 8108 TKP62-ST-ASSY K 43 TKP0625ST-KUMIKOMIHI TKP0625ST-KUMIKOMIHI

E11 8109 TKP68-ST-ASSY K 65 TKP0680ST-KUMIKOMIHI TKP0680ST-KUMIKOMIHI

E11 8110 TKP90-ST-ASSY K 65 TKP0900ST-KUMIKOMIHI TKP0900ST-KUMIKOMIHI

E11 8111 TKP125-ST-ASSY K 65 TKP1250ST-KUMIKOMIHI TKP1250ST-KUMIKOMIHI

E11 8112 TKP91-ST-ASSY K 65 TKP0910ST-KUMIKOMIHI TKP0910ST-KUMIKOMIHI

E11 8113 TKP35-HS-ASSY K 43 TKP0350HS-KUMIKOMIHI TKP0350HS-KUMIKOMIHI

E11 8114 TKP45-HS-ASSY K 43 TKP0450HS-KUMIKOMIHI TKP0450HS-KUMIKOMIHI

E11 8115 TKP58-HS-ASSY K 43 TKP0580HS-KUMIKOMIHI TKP0580HS-KUMIKOMIHI

E11 8116 TKP62-HS-ASSY K 43 TKP0625HS-KUMIKOMIHI TKP0625HS-KUMIKOMIHI

E11 8117 TKP68-HS-ASSY K 65 TKP0680HS-KUMIKOMIHI TKP0680HS-KUMIKOMIHI

E11 8118 TKP90-HS-ASSY K 65 TKP0900HS-KUMIKOMIHI TKP0900HS-KUMIKOMIHI

E11 8119 TKP125-HS-ASSY K 65 TKP1250HS-KUMIKOMIHI TKP1250HS-KUMIKOMIHI

E11 8120 TKP91-HS-ASSY K 65 TKP0910HS-KUMIKOMIHI TKP0910HS-KUMIKOMIHI

E11 8121 TKP91H80-HS150 K 220 TKP0910-HS150 TKP0910-HS150
