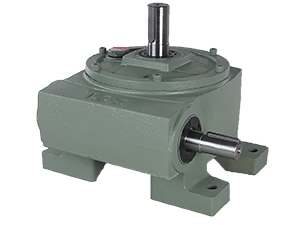

モーターなしタイプですので、入力軸回転数は任意に選択できる便利さがあります。
故障がなく、どこででも広範囲に使用が出来る形式です。
型番、ブレーキサイズ、減速比が多く、用途に合わせ選べます。
ウォームギヤに最適な潤滑油を使用しておりますので、効率も一段と良くなりました。
苏州上野机电设备有限公司销售电话：178950046997 刘经理
| 中心距離 | 148 |
|---|---|
| 減速比 | 15 |
| 製品重量(kg) | 73 |
| 慣性モーメント | 2.8×10^-5kg･㎡ |
| GD^2 | 11×10^-3kgf･㎡ |
| バックラッシュ | 0.0018～0.0035rad |
| 出力軸許容片持荷重 | 7850 |
| 基準作用位置 | 100 |
| 起動効率 | 62 |
| 油種 | ボンノック M320 |
| 油量(ℓ) | 6 |
| セルフロック | セルフロックは別表を参照下さい。 |
| 回転数 （min^-1） | 入力 （kW） | 出力トルク （N･m） | 伝達効率 （%） |
|---|---|---|---|
| 1800 | 13.0 | 911 | 85 |
| 1500 | 12.0 | 980 | 85 |
| 1200 | 10.0 | 1078 | 84 |
| 1000 | 9.8 | 1176 | 84 |
| 500 | 6.2 | 1470 | 82 |
| 100 | 1.50 | 1470 | 70 |
苏州上野机电设备有限公司销售型号：
| LC0-10 | LC0-10 | LC0-10 |
| LC0-15 | LC0-15 | LC0-15 |
| LC0-20 | LC0-20 | LC0-20 |
| LC0-25 | LC0-25 | LC0-25 |
| LC0-30 | LC0-30 | LC0-30 |
| LC0-40 | LC0-40 | LC0-40 |
| LC0-50 | LC0-50 | LC0-50 |
| LC0-60 | LC0-60 | LC0-60 |
| LC1-10 | LC1-10 | LC1-10 |
| LC1-15 | LC1-15 | LC1-15 |
| LC1-20 | LC1-20 | LC1-20 |
| LC1-25 | LC1-25 | LC1-25 |
| LC1-30 | LC1-30 | LC1-30 |
| LC1-40 | LC1-40 | LC1-40 |
| LC1-50 | LC1-50 | LC1-50 |
| LC1-60 | LC1-60 | LC1-60 |
| LC1.5-10 | LC1.5-10 | LC1.5-10 |
| LC1.5-15 | LC1.5-15 | LC1.5-15 |
| LC1.5-20 | LC1.5-20 | LC1.5-20 |
| LC1.5-25 | LC1.5-25 | LC1.5-25 |
| LC1.5-30 | LC1.5-30 | LC1.5-30 |
| LC1.5-40 | LC1.5-40 | LC1.5-40 |
| LC1.5-50 | LC1.5-50 | LC1.5-50 |
| LC1.5-60 | LC1.5-60 | LC1.5-60 |
| LC2-10 | LC2-10 | LC2-10 |
| LC2-15 | LC2-15 | LC2-15 |
| LC2-20 | LC2-20 | LC2-20 |
| LC2-25 | LC2-25 | LC2-25 |
| LC2-30 | LC2-30 | LC2-30 |
| LC2-40 | LC2-40 | LC2-40 |
| LC2-50 | LC2-50 | LC2-50 |
| LC2-60 | LC2-60 | LC2-60 |
| LC3-10 | LC3-10 | LC3-10 |
| LC3-15 | LC3-15 | LC3-15 |
| LC3-20 | LC3-20 | LC3-20 |
| LC3-25 | LC3-25 | LC3-25 |
| LC3-30 | LC3-30 | LC3-30 |
| LC3-40 | LC3-40 | LC3-40 |
| LC3-50 | LC3-50 | LC3-50 |
| LC3-60 | LC3-60 | LC3-60 |
| LC4-10 | LC4-10 | LC4-10 |
| LC4-15 | LC4-15 | LC4-15 |
| LC4-20 | LC4-20 | LC4-20 |
| LC4-25 | LC4-25 | LC4-25 |
| LC4-30 | LC4-30 | LC4-30 |
| LC4-40 | LC4-40 | LC4-40 |
| LC4-50 | LC4-50 | LC4-50 |
| LC4-60 | LC4-60 | LC4-60 |
| LC5-10 | LC5-10 | LC5-10 |
| LC5-15 | LC5-15 | LC5-15 |
| LC5-20 | LC5-20 | LC5-20 |
| LC5-25 | LC5-25 | LC5-25 |
| LC5-30 | LC5-30 | LC5-30 |
| LC5-40 | LC5-40 | LC5-40 |
| LC5-50 | LC5-50 | LC5-50 |
| LC5-60 | LC5-60 | LC5-60 |
| LC6-10 | LC6-10 | LC6-10 |
| LC6-15 | LC6-15 | LC6-15 |
| LC6-20 | LC6-20 | LC6-20 |
| LC6-25 | LC6-25 | LC6-25 |
| LC6-30 | LC6-30 | LC6-30 |
| LC6-40 | LC6-40 | LC6-40 |
| LC6-50 | LC6-50 | LC6-50 |
| LC6-60 | LC6-60 | LC6-60 |
| LC7-15 | LC7-15 | LC7-15 |
| LC7-20 | LC7-20 | LC7-20 |
| LC7-25 | LC7-25 | LC7-25 |
| LC7-30 | LC7-30 | LC7-30 |
| LC7-40 | LC7-40 | LC7-40 |
| LC7-50 | LC7-50 | LC7-50 |
| LC7-60 | LC7-60 | LC7-60 |
| LC8-15 | LC8-15 | LC8-15 |
| LC8-20 | LC8-20 | LC8-20 |
| LC8-25 | LC8-25 | LC8-25 |
| LC8-30 | LC8-30 | LC8-30 |
| LC8-40 | LC8-40 | LC8-40 |
| LC8-50 | LC8-50 | LC8-50 |
| LC8-60 | LC8-60 | LC8-60 |
| LC9-15 | LC9-15 | LC9-15 |
| LC9-20 | LC9-20 | LC9-20 |
| LC9-25 | LC9-25 | LC9-25 |
| LC9-30 | LC9-30 | LC9-30 |
| LC9-40 | LC9-40 | LC9-40 |
| LC9-50 | LC9-50 | LC9-50 |
| LC9-60 | LC9-60 | LC9-60 |
| LC10-20 | LC10-20 | LC10-20 |
| LC10-30 | LC10-30 | LC10-30 |
| LC10-40 | LC10-40 | LC10-40 |
| LC10-50 | LC10-50 | LC10-50 |
| LC10-60 | LC10-60 | LC10-60 |
